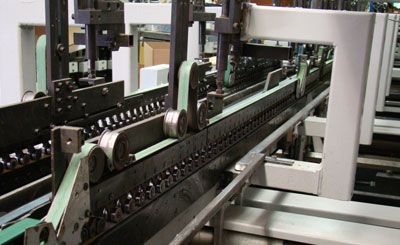

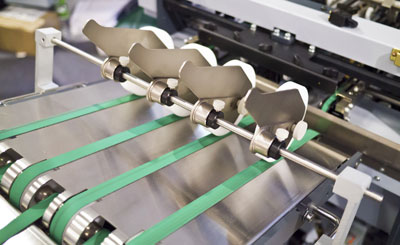

Nycor XG Rubber Belting for Folder-Gluers
- Highly Abrasion-Resistant Carboxylated XG Rubber Covers
- High-Tensile Nylon Core Strength Members
- Dimensionally Stable for Precise Folding and Winding
- Maximum Traction without Excessive Shaft Pressure
- Over 45 Years of Experience Manufacturing NYCOR Nylon Core Belting in the USA
Nycor SG Rubber Belting for Folder-Gluers
- Abrasion resistant NBR rubber and XNBR for covers high abrasion applications; covers are non-marking
- Nycor’s dimensional stability guarantees precise folding
- High tensile polyamide strength member can handle long lengths and high speeds
- Specially designed adhesives manufactured at our King of Prussia facility maximize splice integrity
- We also offer a full line of finger splice-able quick melt belting options
Shingle’s NYCOR SG and XG rubber covers offer excellent abrasion resistance, heat and static dissipative properties, and oil and grease resistance. Shingle Green SG rubber is specially compounded to offer excellent wear as well as high grab. Our Gray XG rubber has even greater abrasion resistance. The coefficient of friction of both Gray and Green SG rubber guarantees maximum traction without excessive shaft pressure.
There are a wide range of top and bottom cover combinations in a variety of materials and thicknesses including textile, anti-static fabric and rubber. These are available off the shelf in standard widths up to 20 inches and lengths to 200 feet and longer. Belts are available laps prepared, endless, longitudinally spliced, and with a variety of other fabrication options.
Characteristics
- No permanent elongation
- High power efficiency
- Speeds up to 10,000 FPM
- Quick, endless splicing
- Abrasion resistant covers
- Over 12 cover styles available
- Offers highest horsepower
- Made in USA
Industries Served
- Paper Converting
- Cone Drives
- Core (Tube) Winding
- Folding & Corrugated Box Manufacturing
- Roll Stands
- Textile Industry
- Poultry Processing
- Printing Industry
- Wire Drawing
- Tissue Packaging Equipment
- Can Manufacturing
- Ball Returns
Documents
| Title | Type | Link |
|---|---|---|
| Shingle – Industry – Newspaper flyer | flyer | |
| Shingle – Industry – Canning Can Manufacturing flyer | flyer | |
| Shingle – Industry – Woodworking flyer | flyer | |
| Shingle – Industry – Paper Converting Equipment flyer | flyer | |
| Shingle – Nycor – Core Winder Belts flyer | flyer | |
| Shingle – Nycor – Flour Mills flyer | flyer | |
| Shingle – Nycor – Nylon Core Belting brochure | flyer | |
| Shingle – Nycor – SC Nycor Folder-Gluer flyer | flyer | |
| Shingle – Nycor – Unwind/Rewind Belts flyer | flyer | |
| Shingle – Nycor – SG Nycor BR Ribbed Belting flyer | flyer | |
| Shingle – Nycor – Wire and Cable flyer |
To view these documents, you need Adobe Acrobat Reader. You can download a free copy from the Adobe web site.
Specifications
| Type | Top Cover | Pulley Cover | Approximate Thickness | Minimum Pulley | Pull for 1% | |||
|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | lbs/in | N/mm | |||
| SG 1A | Green Rubber | A/S Fabric | 0.039 | 1.0 | 0.6 | 15.2 | 20 | 3.5 |
| SG 1.4.7T | Green Rubber | Textile | 0.050 | 1.3 | 1.0 | 25.4 | 21 | 3.7 |
| SG 155 | Green Rubber | Green Rubber | 0.120 | 3.0 | 1.2 | 30.5 | 30 | 5.3 |
| SG 21A | Green Rubber | A/S Fabric | 0.060 | 1.5 | 1.5 | 38.1 | 30 | 5.3 |
| SG 211 | Green Rubber | Green Rubber | 0.076 | 1.9 | 1.5 | 38.1 | 30 | 5.3 |
| SG 25A | Green Rubber | A/S Fabric | 0.100 | 2.5 | 2.0 | 50.8 | 30 | 5.3 |
| SG 31A | Green Rubber | A/S Fabric | 0.074 | 1.9 | 2.0 | 50.8 | 45 | 7.9 |
| SG 311 | Green Rubber | Green Rubber | 0.086 | 2.2 | 2.0 | 50.8 | 45 | 7.9 |
| SG 311XG/XG | Gray X-Rubber | Gray X-Rubber | 0.086 | 2.2 | 2.0 | 50.8 | 45 | 7.9 |
| SG 333 | Green Rubber | Green Rubber | 0.128 | 3.3 | 2.3 | 57.2 | 45 | 7.9 |
| SG 333XG/XG | Gray X-Rubber | Gray X-Rubber | 0.128 | 3.3 | 2.3 | 57.2 | 45 | 7.9 |
| SG 3K5 | Synthetic Leather | Green Rubber | 0.160 | 4.1 | 2.5 | 63.5 | 45 | 7.9 |
| SG 35A | Green Rubber | A/S Fabric | 0.110 | 2.8 | 2.0 | 50.8 | 45 | 7.9 |
| SG 355 | Green Rubber | Green Rubber | 0.158 | 4.0 | 2.5 | 63.5 | 45 | 7.9 |
| SG 388 | Green Rubber | Green Rubber | 0.197 | 5.0 | 2.5 | 63.5 | 45 | 7.9 |
| SG 39A | Green Rubber | A/S Fabric | 0.150 | 3.8 | 2.5 | 63.5 | 45 | 7.9 |
| SG 399 | Green Rubber | Green Rubber | 0.236 | 6.0 | 2.5 | 63.5 | 45 | 7.9 |
| SG 411 | Green Rubber | Green Rubber | 0.096 | 2.4 | 2.5 | 63.5 | 60 | 10.5 |
| SG 45A | Green Rubber | A/S Fabric | 0.120 | 3.0 | 3.0 | 76.2 | 60 | 10.5 |
| SG 455 | Green Rubber | Green Rubber | 0.166 | 4.2 | 3.5 | 88.9 | 60 | 10.5 |
| SG 4/60A | Green Rubber | A/S Fabric | 0.236 | 6.0 | 4.5 | 114.3 | 60 | 10.5 |
| SG 511 | Green Rubber | Green Rubber | 0.106 | 2.7 | 4.0 | 102 | 75 | 13.1 |
| SG 515 | Green Rubber | Green Rubber | 0.137 | 3.5 | 4.5 | 114 | 75 | 13.1 |
| SG 533 | Green Rubber | Green Rubber | 0.150 | 3.8 | 4.5 | 114 | 75 | 13.1 |
| SG 533XG/XG | Gray X-Rubber | Gray X-Rubber | 0.150 | 3.8 | 4.5 | 114 | 75 | 13.1 |
| SG 555 | Green Rubber | Green Rubber | 0.178 | 4.5 | 4.5 | 114 | 75 | 13.1 |
| SG 711 | Green Rubber | Green Rubber | 0.126 | 3.2 | 6.0 | 152 | 105 | 18.4 |
| SG 733XG/XG | Gray X-Rubber | Gray X-Rubber | 0.168 | 4.3 | 6.0 | 152 | 105 | 18.4 |
| SG 755 | Green Rubber | Green Rubber | 0.195 | 5.0 | 6.0 | 152 | 105 | 18.4 |
| SG 10555 | Green Rubber | Green Rubber | 0.224 | 5.7 | 10.0 | 254 | 150 | 26.3 |
| SG 14015 | Green Rubber | Green Rubber | 0.231 | 5.9 | 19.0 | 483 | 210 | 36.8 |
| SG 18019 | Green Rubber | Green Rubber | 0.310 | 7.9 | 26.0 | 660 | 270 | 47.3 |
| SG 71BR | Green Rubber | Ribbed Black Rubber | 0.155 | 3.9 | 6.0 | 152.4 | 105 | 18.4 |
| SG 1051BR | Green Rubber | Ribbed Black Rubber | 0.190 | 4.8 | 10.0 | 254 | 150 | 26.3 |
| SG 1201BR | Green Rubber | Ribbed Black Rubber | 0.205 | 5.2 | 14.0 | 355.6 | 170 | 29.8 |
| SG 1401BR | Green Rubber | Ribbed Black Rubber | 0.225 | 5.7 | 20.0 | 508 | 210 | 36.8 |
